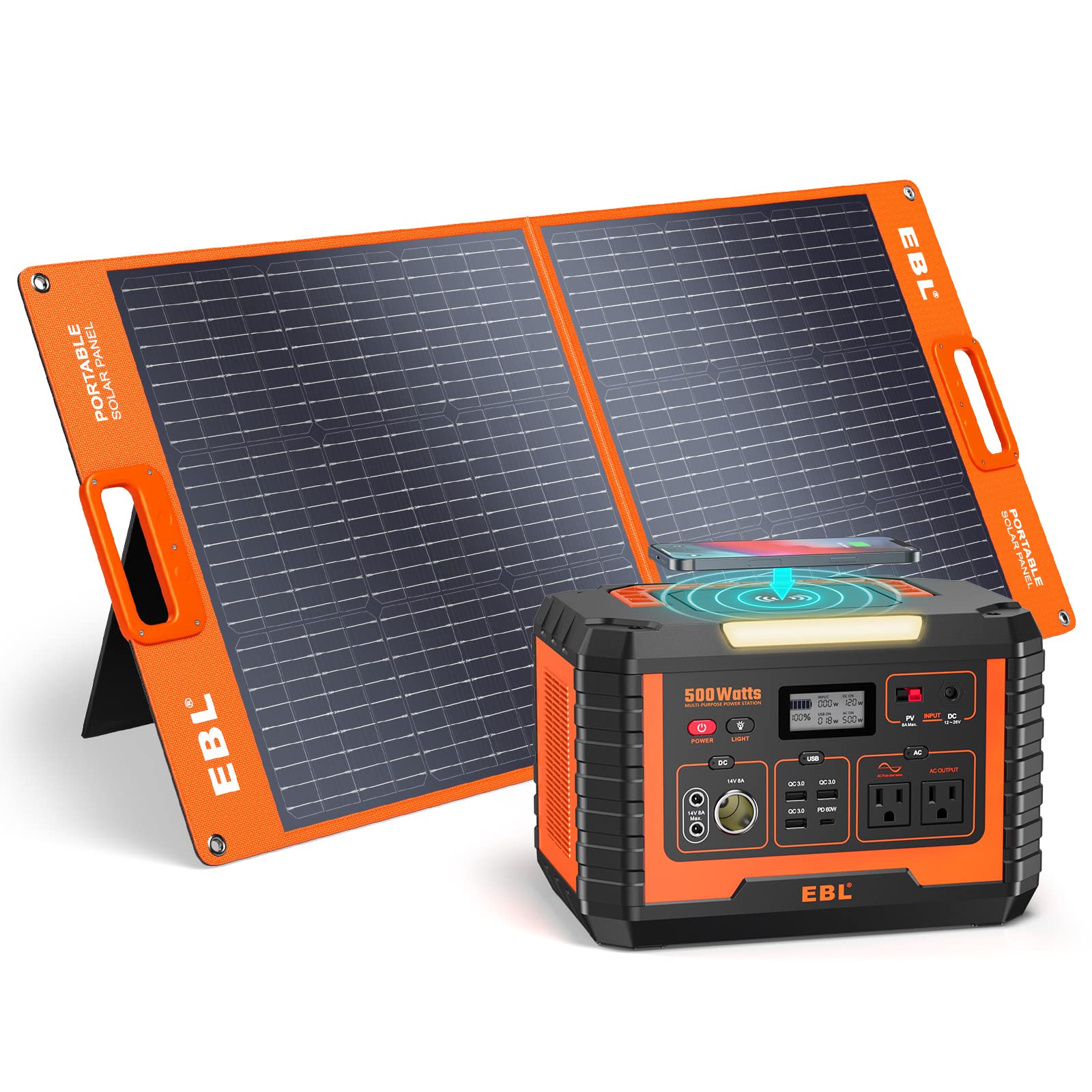

EBL Portable Power Station 500W with 100W Solar Panel
Tax excluded. Shipping calculated at checkout
Perfect Real Capacity: With 500w high capacity, EBL Voyager 500 is ready to power for most home and outdoor needs, such as Electric Grill, Coffee Maker, Frage, Microwave, Electric Stove.

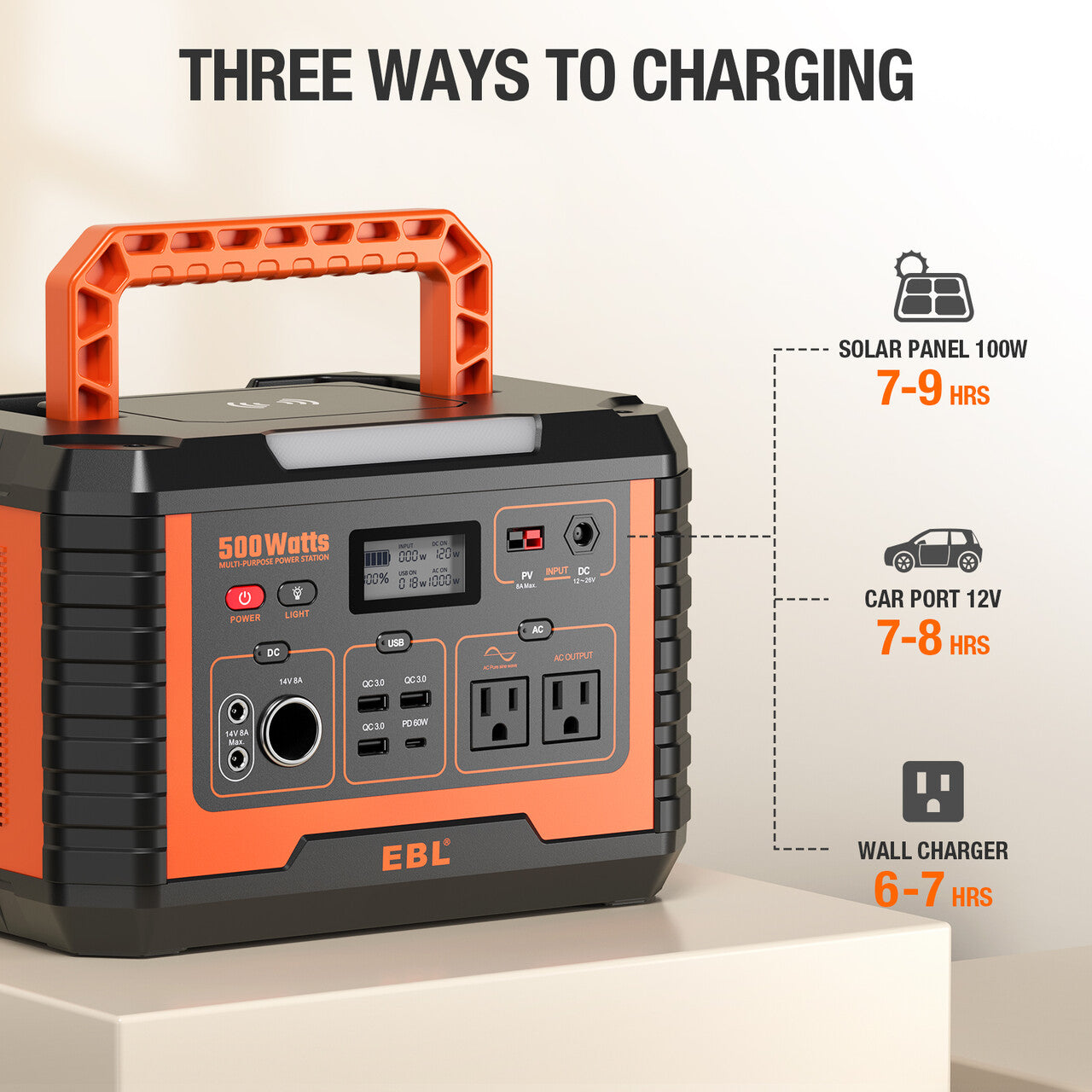

Flexible Charging Options: The EBL 500W Power Station provides three charging methods—AC wall, 100W Solar Panel, or car outlet. It takes only 6-9 hours to fully charge.
Smart IC & High Efficiency: The EBL 100W solar panel features 23% high-efficiency solar cells with Smart IC protection against overcharging, overheating, and short circuits.

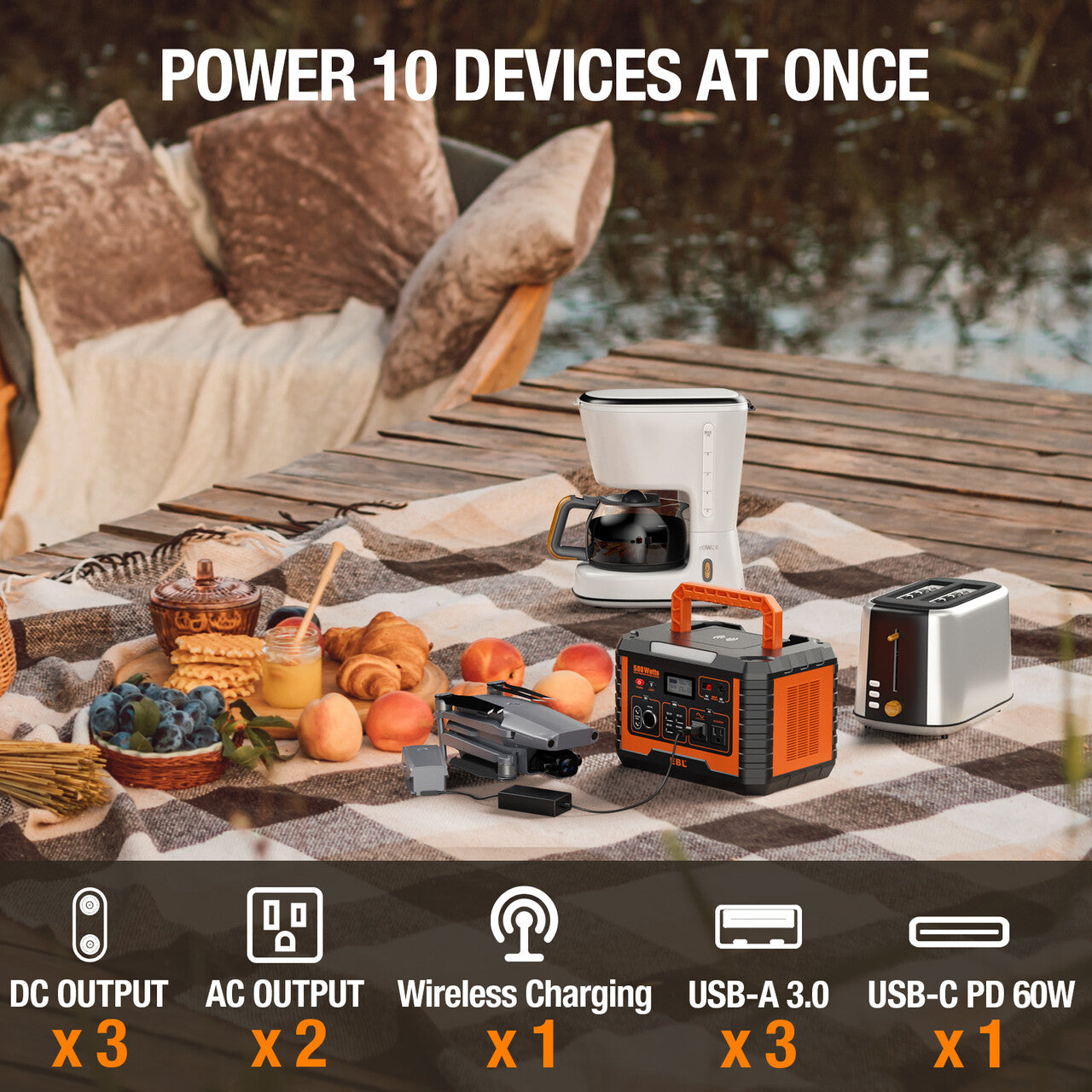

Multifunctional Ports: With 10 charging ports including 14V DC, 110V AC, USB-C PD, and Wireless charging, the EBL generator can power up to 10 devices simultaneously.

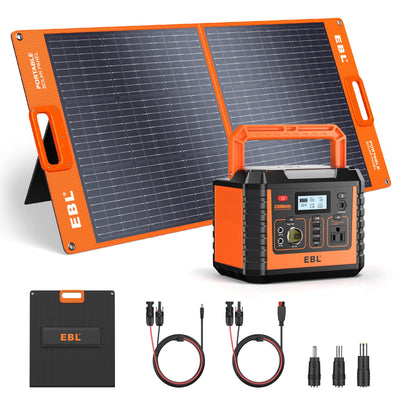

What You Get
Packages for 500W Power Station Include:
- 1 x MC4-7909 Connector Cable
- 1 x AC 100-240V Wall Plug Power Adapter
- 1 x 12V Car Charger Cable
- 1 x User Manual

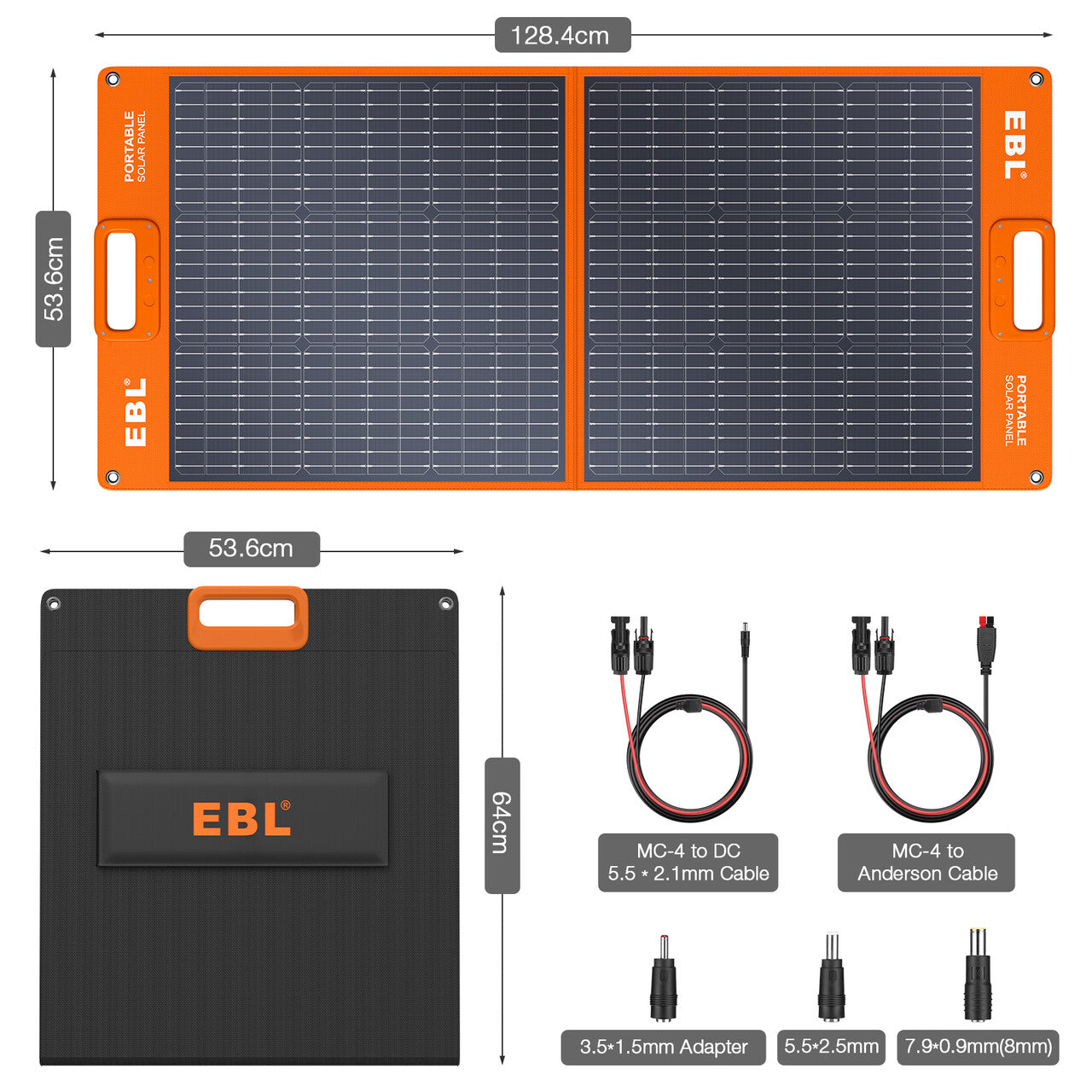

Packages for 100W Solar Panel Include:
- 1 x EBL 100W Solar Panel
- 1 x MC4 TO ANDERSON and DC5521 Cable
- 1 x 5.5*2.1mm to 5.5*2.5mm Adapter
- 1 x 5.5*2.1mm to 7.9*0.9mm Adapter
- 1 x 5.5*2.1mm to 3.5*1.5mm Adapter
- 1 x User Manual

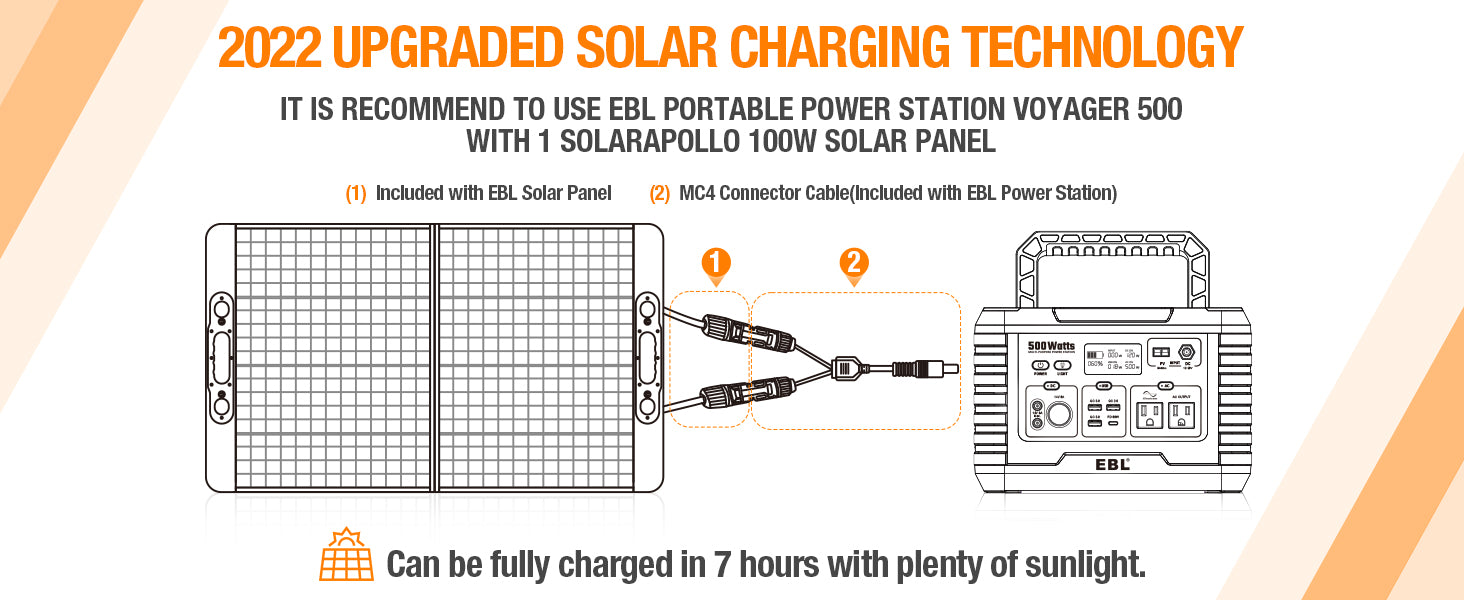

How to connect the 500W power station with an EBL Solar Apollo 100W solar panel?
Specification of 500W Power Station
MP500
NCM Li-ion Battery
500W
3.7V/519.4Wh/140400mAh
Portable, Foldable Handle, Overload Protection, Short Circuit Protection, Wireless Charging
AC & Car Port & Solar Panel
- Voltage: 12V~26V
- Current: 4A~6A
- Voltage: 12-26V
- Current: 5.5A~6A
- Voltage: 12V~15V
- Current: 5.5A~6A
105W(Max)
550±40W
Value
LED
Pure Sine Wave
110V±10%/60Hz
11.8V-14V / 8A
5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W
5V/ 9V/12V/15V/20V⎓3A (Max.60W )
11.8V-14V / 8A
- 10W
- 8.8V-9.3V
- 0.8A-1.3A
14 to 104°F
32 to 104°F
-4 to 113°F
6.8kg/14.99LBS
7.8kg/17.2LBS
(11.5"L x 7.95"W x 7.64"H)in

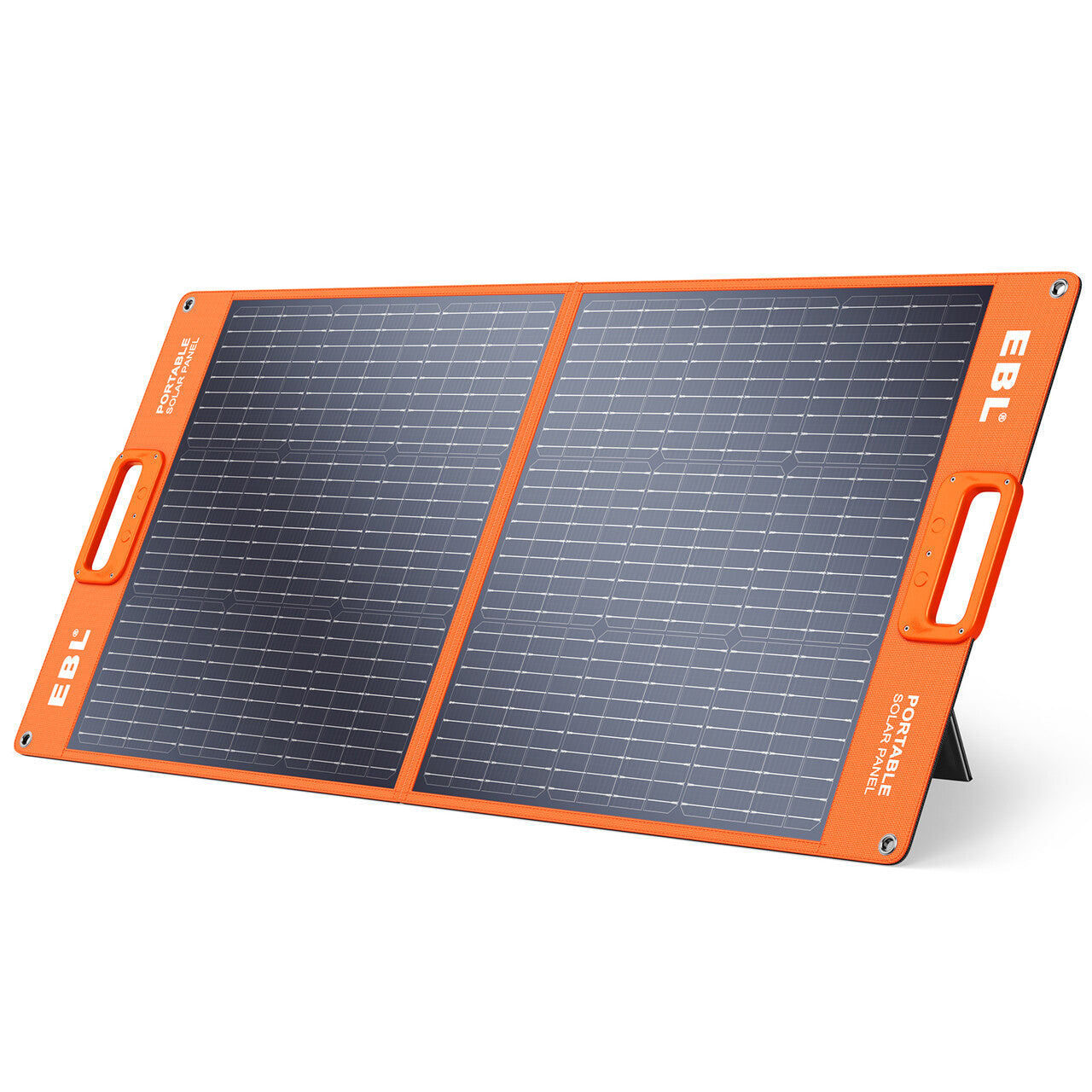

Specification of 100W Solar Panel
ESP-100
100W
23%
20V
5A
6A
23.5V
-4°F-140°F
4.67±0.3kg
≈5.33kg
50*21*0.2 inch
25*21*2.5 inch
