EBL AA AAA Batteries with 807 Smart Battery Charger
Tax excluded. Shipping calculated at checkout

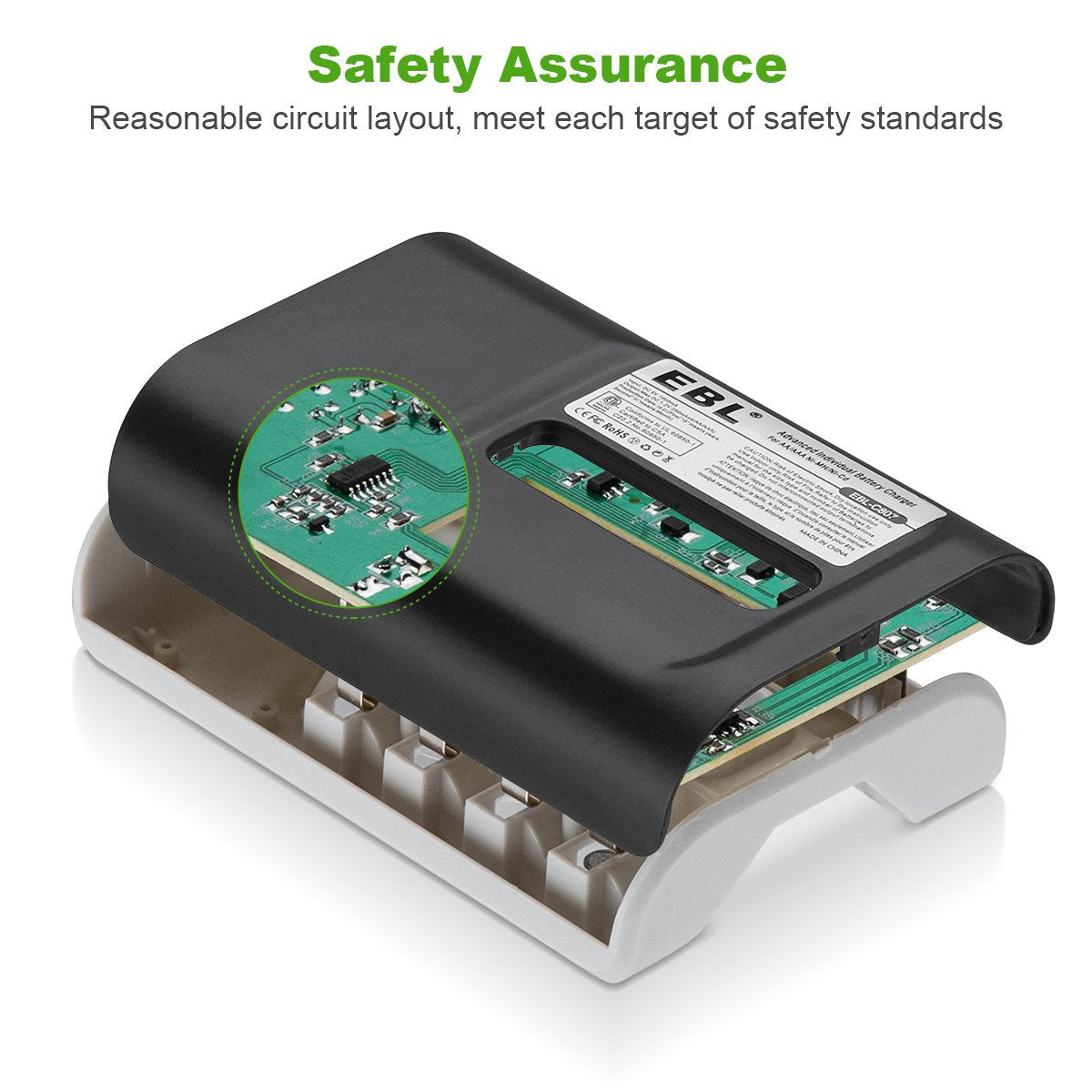

Reasonable Circuit Layout: This charger utilizes advanced MCU control and rational circuit layout, and features a negative delta V (-∆V) power-off function, which automatically cuts off the power after a full charge.
Worldwide Usage: The aa and aaa battery charger is Worldwide Usage with US AC Plug
Charging Time Table
- 1 to 4pcs AAA 500-1200mAh: 1.5 - 4 hours(180mA output)
- 1 to 4pcs AA 1300-2800mAh: 1.5 - 6 hours(200mA output)
Download User Guide (PDF)
What You Get
- 1 x EBL 807 battery charger
- 1 x user manual
- 4/8pcs AA/AAA batteries
-

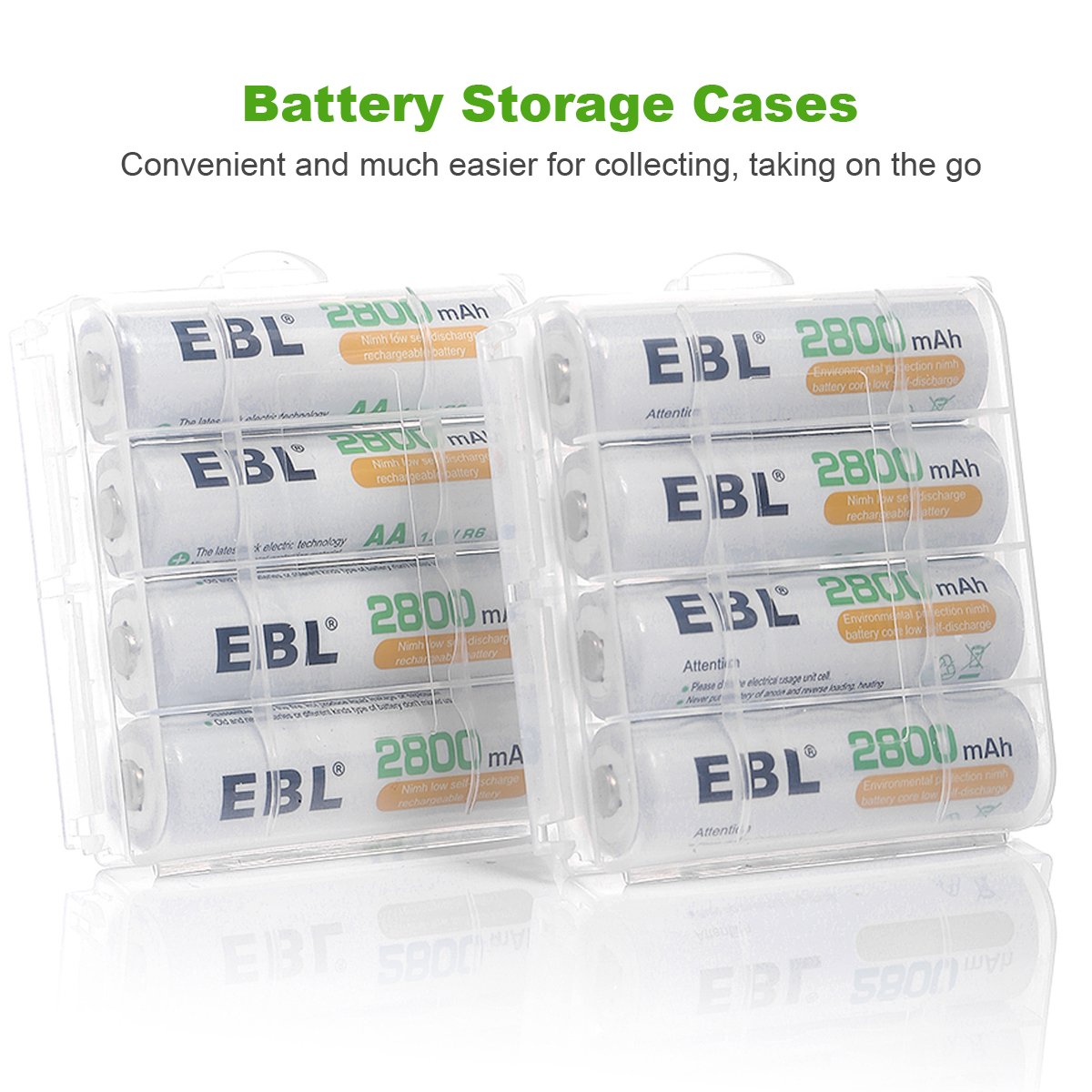

Batteries with Durable Case Packed
Specification of battery charger
|
Model No. |
C9047 |
Product Type |
807 Battery Charger |
|
Input |
DC 5V 1A |
Output |
AA/AAA 1.2V 4*250mA (Max) |
|
Size |
(115*77*28)±3mm |
Weight |
3.2oz |
- LED state the charging statues : Red means charging, green means fully charged.
- Compatible with 1/2/3/4 AA AAA AAAA Ni-MH Ni-CD Rechargeable Batteries. (Do not charge alkaline or Lithium batteries)
- Operating Temperatue: 0-35℃, Humidity: 35%-95％
- Storage Temperatue: -10-50℃, Humidity: 35%-85％
Specification of AA Battery
|
Battery Size |
AA Batteries |
Battery Type |
|
|
Voltage |
1.2V |
Capacity |
2800mAh |
|
Rechargeable |
Yes |
End voltage of discharge |
1V |
|
Charge Current |
|
Discharge Current |
|
|
Open circuit voltage |
1.25V |
Internal impedance |
≤38mΩ |
|
Weight of Single AA Battery |
0.87oz |
Dimensions of Single AA Battery |
(50.5-1)*(14.5-0.7)mm |
Specification of AAA Battery
|
Battery Size |
AAA Batteries |
Battery Type |
|
|
Voltage |
1.2V |
End voltage of discharge |
1V |
|
Rechargeable |
Yes |
Capacity |
1100mAh |
|
Charge Current |
|
Discharge Current |
|
|
Open circuit voltage |
1.25V |
Internal resistance |
≤40 mΩ |
|
Weight of Single AAA Battery |
0.42oz |
Dimensions of Single AAA Battery |
(44.35±0.3)*(10.35±0.25)mm |
Attention
1. Please ensure the battery installed is correct: make the +/- pole of the battery is a match the +/- pole of the charger.
2. Never mix charge different types and different capacities of batteries under the same LED indicator.
3. Using environment: 0℃ to 40℃, it is a normal phenomenon that the battery is warmer than room temperature when charging.
4. Don't disassemble or reassemble the charger by yourself for safety reasons.
Attention
1. Please ensure the battery installed is correct: make the +/- pole of the battery is a match the +/- pole of the charger.
2. Never mix charge different types and different capacities of batteries under the same LED indicator.
3. Using environment: 0℃ to 40℃, it is a normal phenomenon that the battery is warmer than room temperature when charging.
4. Don't disassemble or reassemble the charger by yourself for safety reasons.
What You Get
- 1 x 807 battery charger
- 1 x User Manual
- 1 x USB Cable
Charging Time Table
- 1 to 4pcs AA 1300-2800mAh: 1.5 - 6 hours (200mA output)
- 1 to 4pcs AAA 500-1200mAh: 1.5 - 4 hours (180mA output)
%20power-off%20function,%20which%20automatically%20cuts%20off%20the%20power%20a...
){kind=link}
EBL AA AAA Battery Charger
Specifications
C9047
1/2/3/4 AA AAA AAAA Ni-MH Ni-CD Rechargeable Batteries.
DC 5V 1A
AA/AAA 1.2V 4*250mA (Max)
≈(4.53*3.03*1.10) inch
3.2oz
User Manual
Download User Guide (PDF) of AA AAA Batteries Charger
Download User Guide (PDF) of AA AAA Batteries Charger
FAQ
How many batteries can be charged at a time?
1 to 4 pieces of AA, AAA or AAAA batteries at a time, singly or in pairs, without the need to recharge the batteries in pairs.
Can I use a charger for both AA and AAA batteries?
Yes. Each slot is completely independent, so you can put either AA or AAA in any slot.
