EBL 802 Smart Charger With AA AAA 9V Batteries Kit
Tax excluded. Shipping calculated at checkout
EBL 4 PCS Rechargeable AA Batteries 2800mAh, 4 PCS AAA Batteries 1100mAh and 2PCS 9V 280mAh Batteries with Charger, Built-in Foldable Wall Plug, Automatic Power-Off Smart Battery Charger for AA AAA 9V NiMH NiCD Batteries

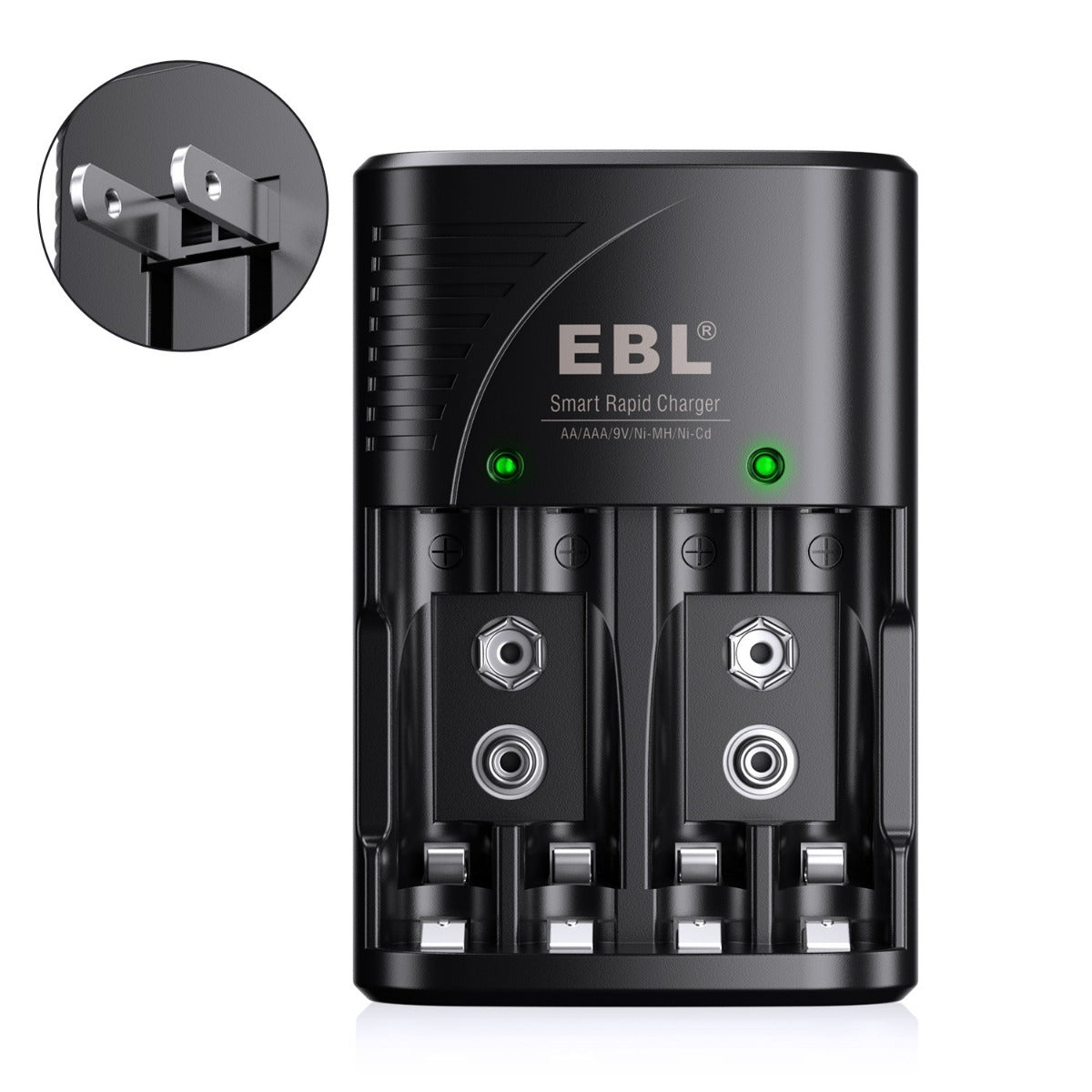

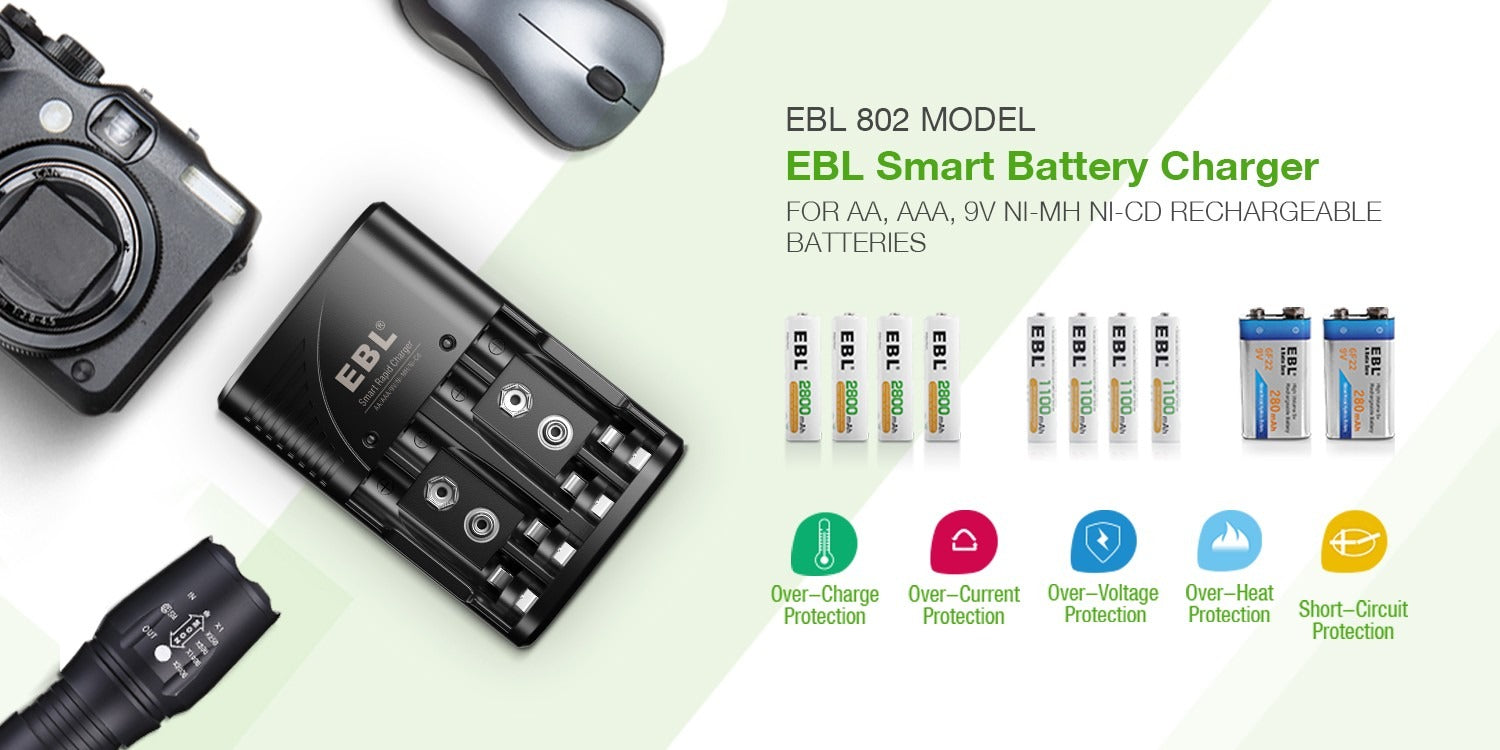

⚡EBL 802 Smart Rapid Battery Charger

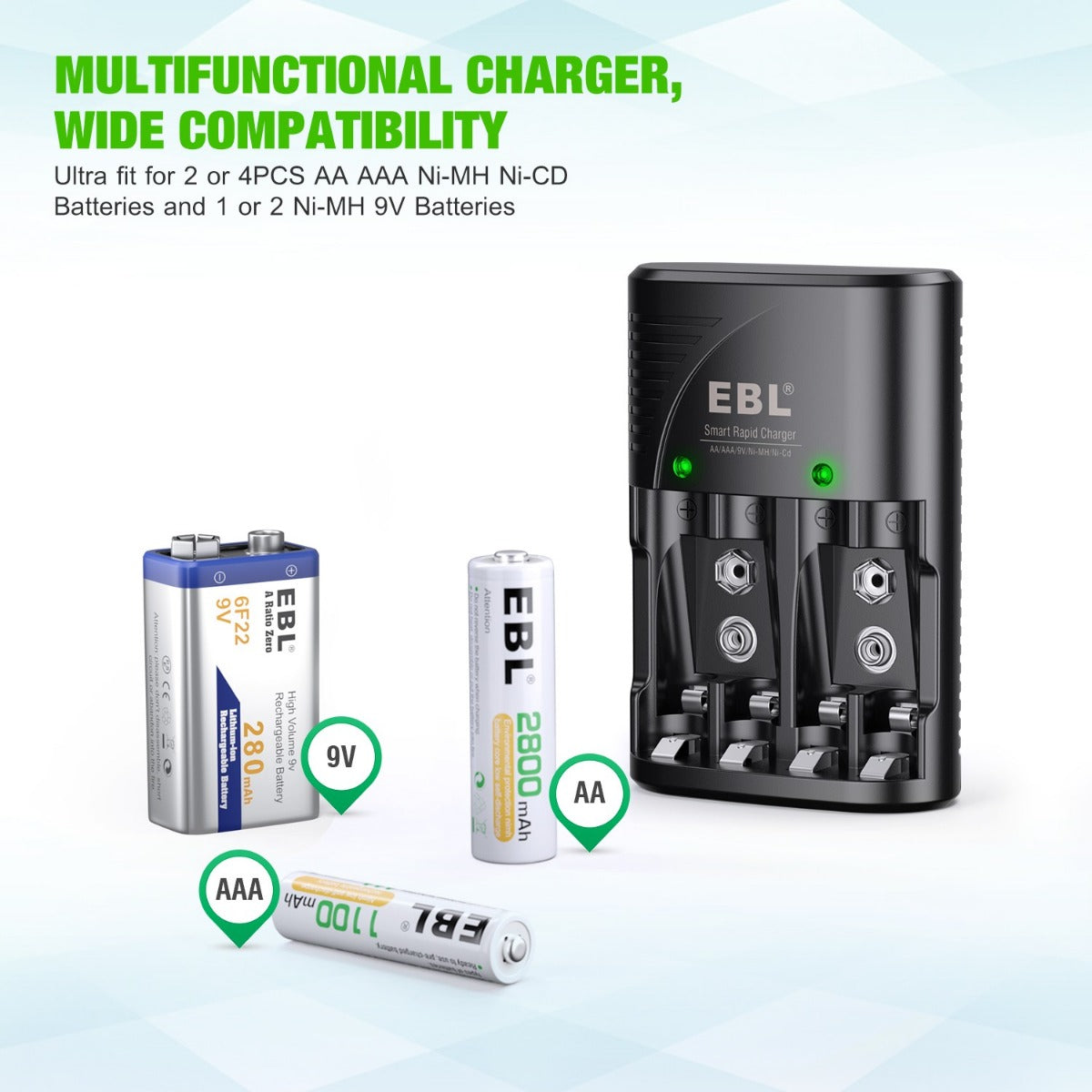

- 3 in 1 Multiple Function Battery Charger: EBL-802 battery charger could freely charge 2/4 AA/AAA Ni-MH/Ni-CD rechargeable batteries in pairs, and also charge 1/2 pieces 9V Ni-MH/Ni-CD batteries individually.
- Worldwide usage: 100-240V AC Input, 50/60 Hz, easy and convenient for daily use.

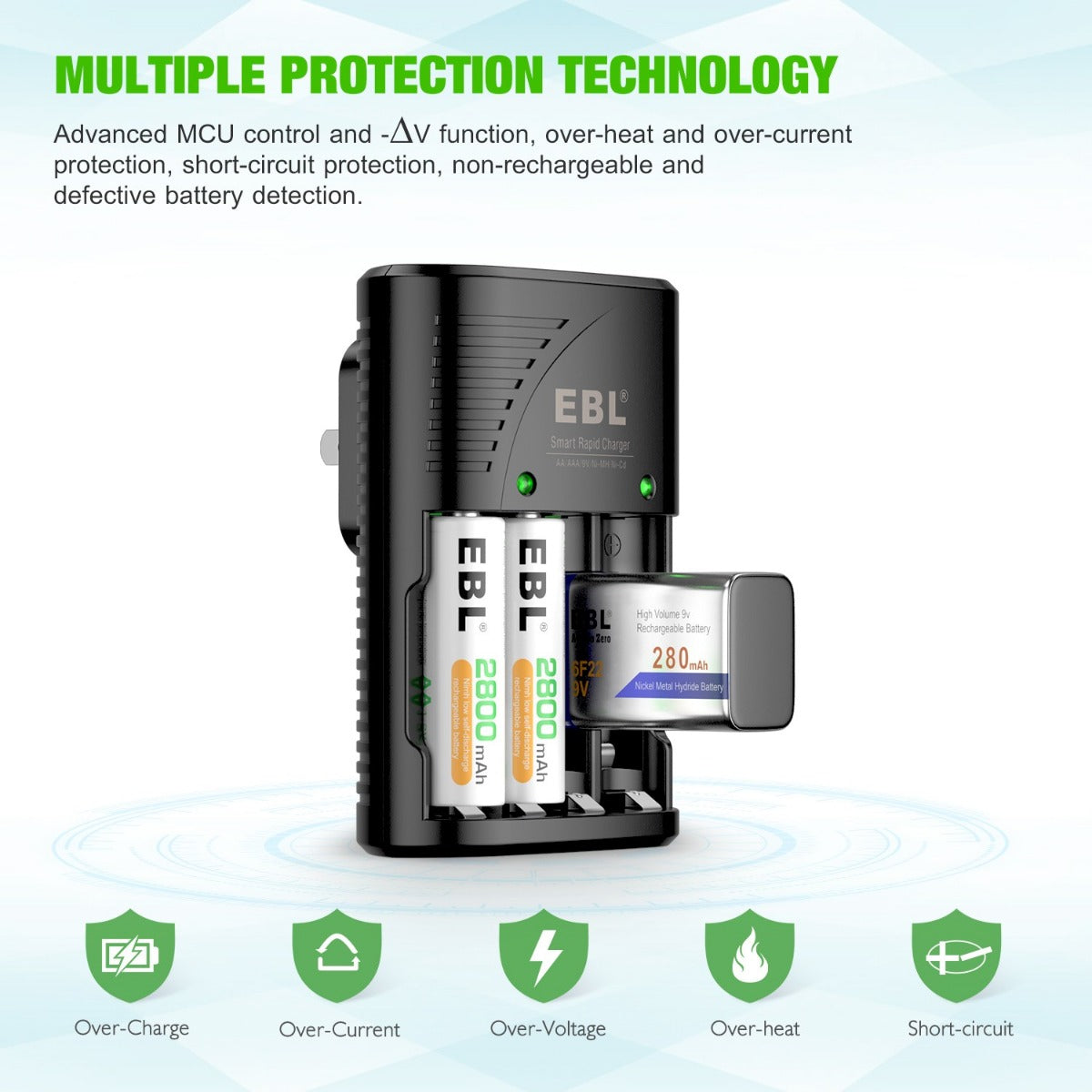

- Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection and reverse polarity protection.
- Safety Assurance: Controlled by MCU, and using -△V pulse charging technology, prevent the charger from over-charge,over-discharge, over-current and over-heat.

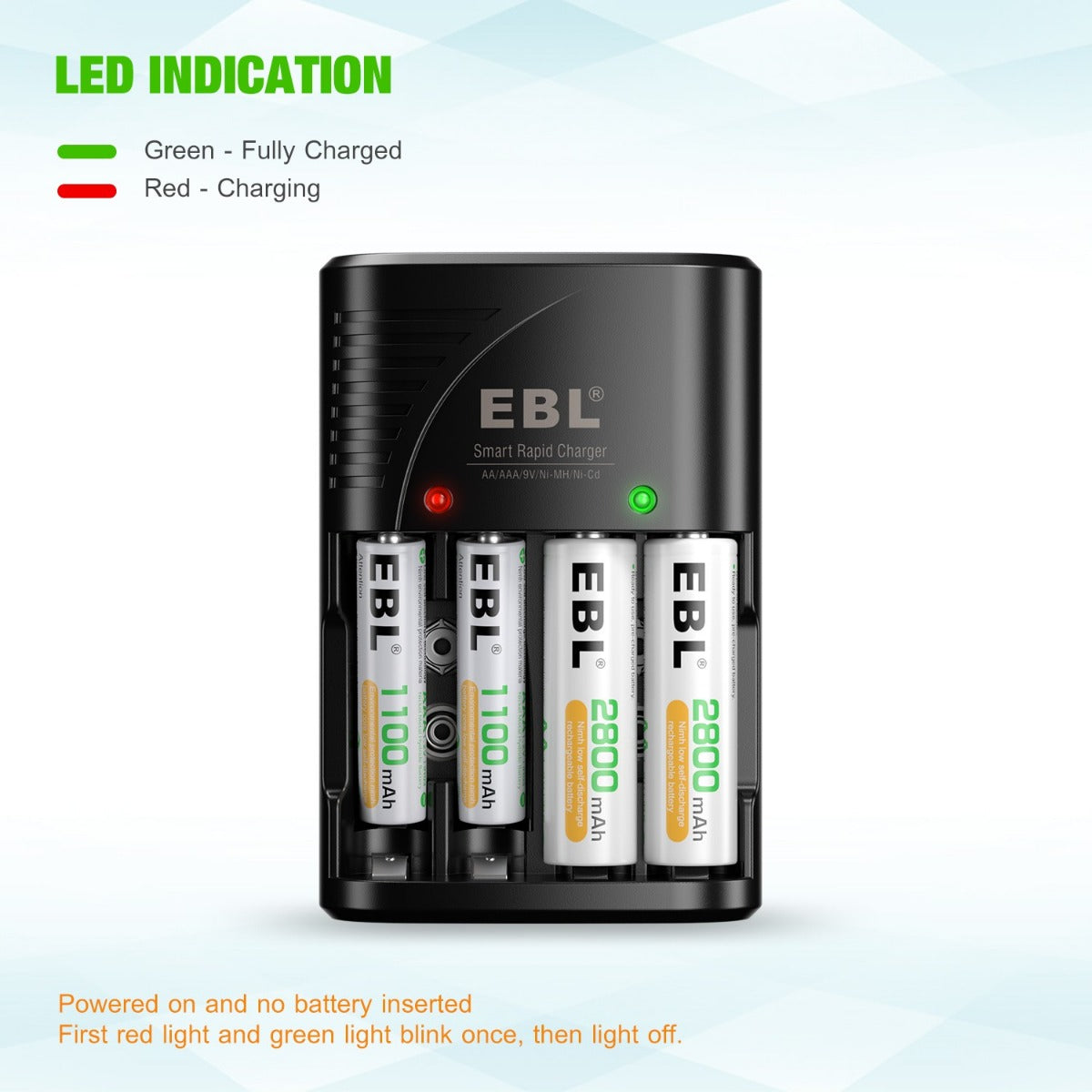

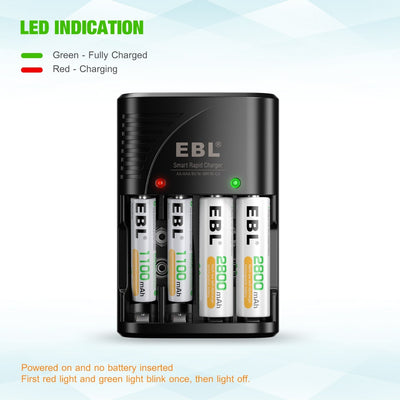

- LED Indication: LED shows the charging status: Red Light - Charging, Green Light - Fully Charged.

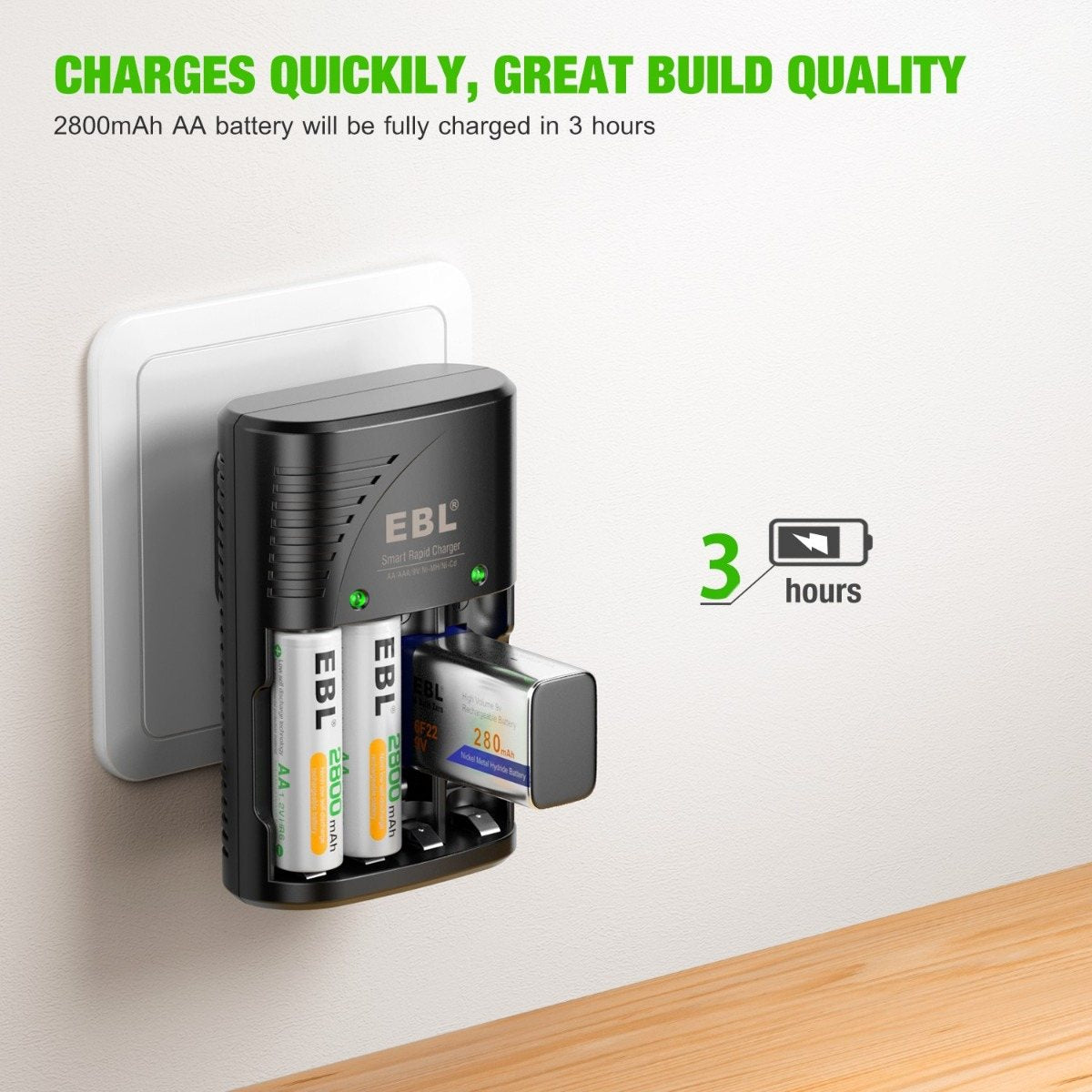

- Fast charger - Quick charging IC, power your batteries super fast, great build quality.
Specification
|
Product Type |
802 Battery Charger |
Brand |
EBL |
|
Compatible |
2/4 AA/AAA Ni-MH/Ni-CD rechargeable batteries, 1/2 pieces 9V Ni-MH/Ni-CD batteries |
||
|
Input |
AC 100~240V 50/60Hz 4W Max |
Output |
AA/AAA batteries: DC 2.4V 600-670mA; |
|
Weight |
82±5g/3.07oz |
Size |
（100*67*69.34mm）±3 mm |
- Operating Temperatue: 0-30℃, Humidity: ≦80％
- Storage Temperatue: 0-25℃, Humidity: ≦60％
- Surface Temperatue of batteries when charging: ≦60℃
- Surface Temperatue of charger when charging: ≦45℃
🔋EBL AA Ni-MH Rechargeable Batteries 2800mAh
Specifications
|
Battery Size |
AA Batteries |
Brand |
EBL |
|
Voltage |
1.2V |
Battery Type |
|
|
Rechargeable |
Yes |
Capacity |
2800mAh |
|
Charge Current |
Trickle: 0.02C-0.05C Standard: 210mA x 16H Quick: 420mA x 7H Rapid: 1050mA x 2.4H |
Discharge Current |
Standard: 420mA High Rate: 2100mA
|
|
End voltage of discharge |
1V |
|
|
|
Open circuit voltage |
1.25V |
Internal impedance |
≤38mΩ |
|
Weight of Single AA Battery |
24.8g/0.87oz |
Dimensions of Single AA Battery |
(50.5-1)*(14.5-0.7)mm |
High performance & High Quality
- Up to 1,200 rechargeable cycles.
- Precharged 15%~20% of capacity by solar energy. Could be used when you get it.
- Excellent charge/discharge performance, the batteries will keep a high quality after 3-5 times charge & discharge when used in the first time or long time no used.
Compatible Models
Batteries are great for use in household devices such as digital cameras, toys, remote controls, handheld games, 2-way radios, PDAs, flashlights, alarm clocks, LCD-TVs， Toothbrushes, Shaver's, and portable audio players.
🔋EBL AAA Rechargeable Ni-MH Batteries 1100mAh
Specification
|
Battery Size |
AAA Batteries |
Brand |
EBL |
|
Voltage |
1.2V |
Battery Type |
|
|
Rechargeable |
Yes |
Capacity |
1100mAh |
|
Charge Current |
Trickle: 0.02C-0.05C Standard: 80mA(0.1C) for 16H Quick: 160mA (0.2C) for 7H Rapid: 400mA (0.5C) for 2.4H |
Discharge Current |
Standard: 160mA (0.2C) High Rate: 800mA (1C) |
|
End voltage of discharge |
1V |
|
|
|
Open circuit voltage |
1.25V |
Internal resistance |
≤40 mΩ |
|
Weight of Single AAA Battery |
12±1.5g/0.42oz |
Dimensions of Single AAA Battery |
(44.35±0.3)*(10.35±0.25)mm |
🔋EBL 9V Rechargeable Batteries 280mAh
Specifications
|
Battery Size |
9V |
Rechargeable |
Yes |
|
Capacity |
280mAh |
Brand |
EBL |
|
Battery Type |
Ni-MH |
Total Resistor |
≤700mΩ |
|
Rated Voltage |
8.4V |
Charge limited voltage |
10.5V |
|
Discharge-off voltage |
7V |
Standard Discharge |
30mA(0.2C) ≥300min |
|
Standard Charging |
15mA(0.1C)×15hrs |
Rapid Charging Current |
150mA(1.0C)×1.1hrs |
|
Rapid Discharge Current |
150mA(1.0C)≥54min |
|
|
|
Dimensions of single battery |
45.4*26.6*17.3mm |
Weight of single battery |
35g/1.23oz |
Internal Resistance: ≤75mΩ
Ambient Temperature: Standard charge 0~45℃
Rapid charge 0~40℃
Discharge -20~50℃
Store: (65+20% RH)
Less than 30 days: -20~50℃
Less than 90 days: -20~40℃
Less than 360 days: -20~30℃
Ultra Long Lasting
EBL high-performance Ni-MH batteries have been manufactured with premium raw materials and high-density cell technology, they will give your devices enough power and last longer, so you can rest assured to use your various devices.
High Performance & Easy to Use
- Allows you to enjoy up to 5.5 hours of toy activity (Results may vary by device and use).
- Easy to operate, no memory effect, can be charged anytime.
Low Self Discharge
Improved low self-discharge makes it still maintain 75% of capacity after 3 years of non-use.

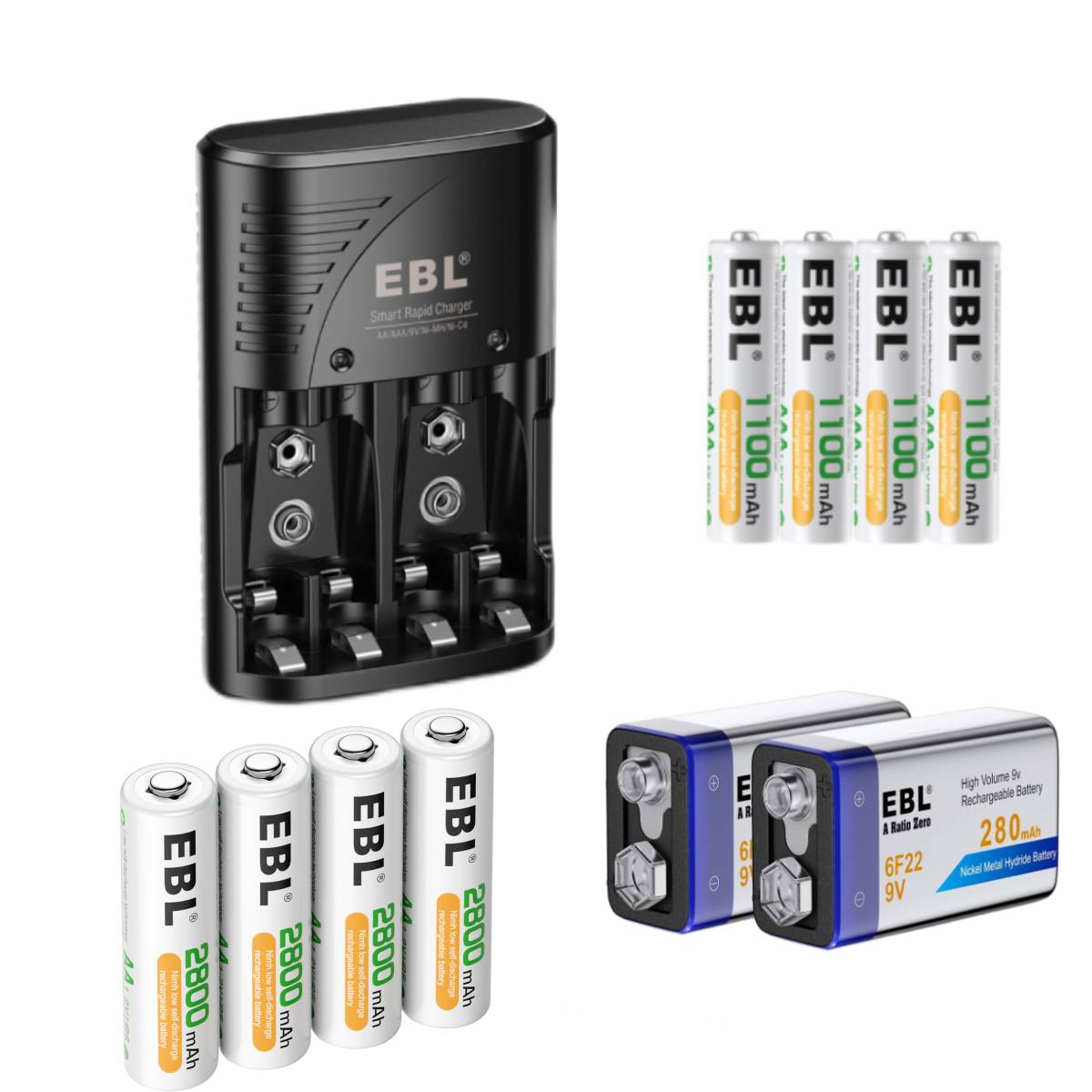

What you get
- 1 x EBL 802 Battery Charger
- 1 x User Manual
- 4 x AA Batteries 2800mAh
- 4 x AAA Batteries 1100mAh
- 2 x 9V Batteries 280mAh
